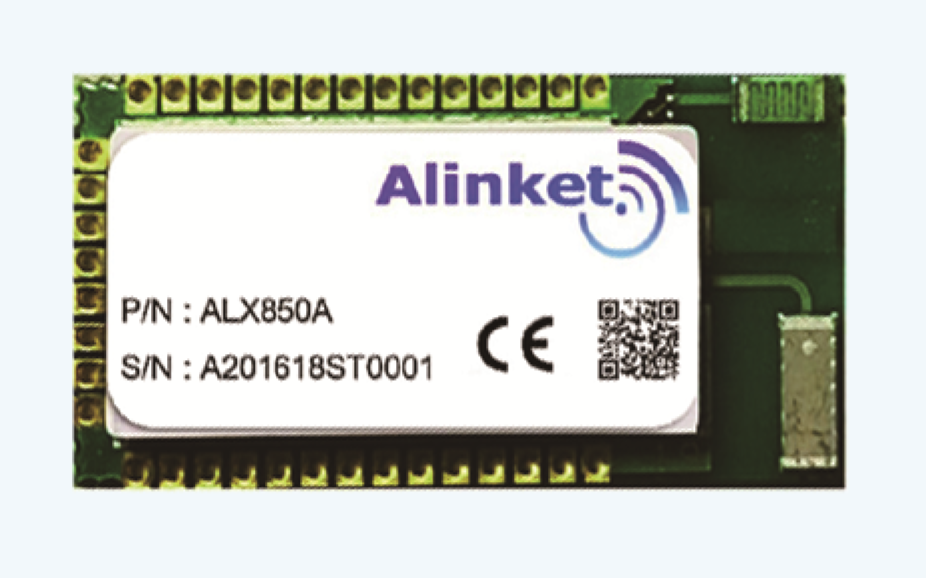

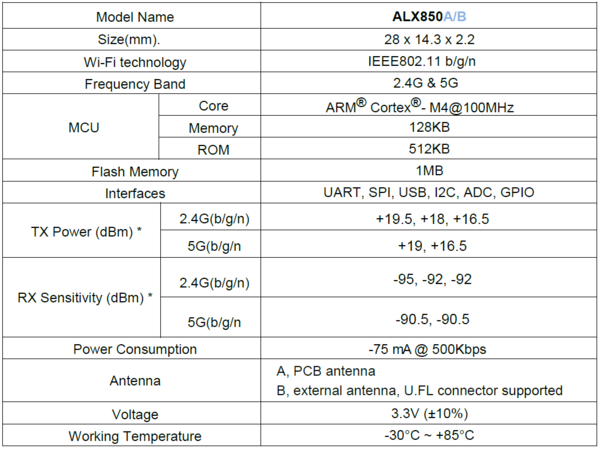

ALX850A/B  Wi-Fi Controller

Antenna : A: on-board PCB antenna / B: external U.FL antenna
Ethernet / Network Interfaces : —
Other Interfaces : UART to STA/AP; Periph.: UART / SPI / I2C / GPIO / ADC
Memory & Storage : —
Cloud Protocol : Yes
Security : WPA / WPA2 / EAP
Power Supply : 3.3 V
Power Consumption : —
Dimensions (mm) : 28 x 14.3 x 2.2
Weight : —
Operating Temp. : ACM commands
Certification : CE / FCC / RoHS
Type / Function : Controller (protocol stack on-board)
Processor / MCU : ARM Cortex-M4
Battery & Life : —
Sensing Capability : —
Operating Temperature : -30 C to +85 C
Product Details

Introduction

TheALX850A/B is a series of small, low power consumption,self-contained certified 2.4G/5G dual-band network controllers that can be usedthrough UART, USB, SPI and other Interfaces to establish Internetconnection to your devices. This series of controllers is the ideal solutionfor equipment manufacturers in the healthcare, industrial control, homeappliances, and smart energy industries.

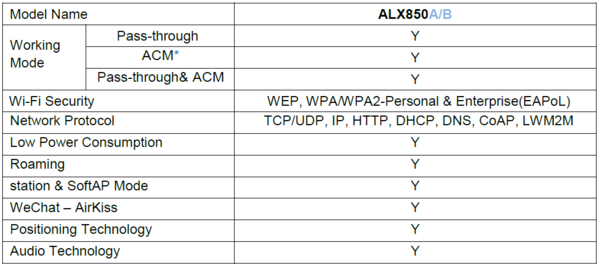

Characteristic

  • Wi-Fi 802.11,2.4G/5G bands

  • Multi-interfaces:UART, SPI, USB

  • Multi-SocketTCP/UDP connection

  • Network configuration APP-Flashlink

  • Wi-Fistation and SoftAP dual modes

  • Roaming(optimal trigger mechanism)

  • Enterprise Security - WPA/WPA2 - Enterprise or 802.1x/EAPoL

  • OTA upgrades

  • Working temperature:-30°C to +85°C

  • FCC and CE compliance ,RoHS certification



Description
