DGW810 BLE to WiFi Gateway

DGW810 BLE to WiFi Gateway
Antenna : Built-in PCB antenna
Ethernet / Network Interfaces : 1 × RJ45 (reserved)
Other Interfaces : Micro USB ×1 (5 V/1 A), function key ×1, LED ×2
Memory & Storage : —
Cloud Protocol : MQTT, LwM2M, HTTP
Security : WEP_PSK / WPA/WPA2_PSK; AES, TKIP
Power Supply : Micro USB 5 V / 1 A
Power Consumption : Standby as low as 1.2 W
Dimensions (mm) : 65 × 50 × 22
Weight : 40 g
Operating Temp. : -30 °C ~ +80 °C
Certification : —
Type / Function : Bluetooth to Wi-Fi gateway
Processor / MCU : ARM Cortex-M4
Battery & Life : —
Sensing Capability : —
Operating Temperature : -30 C to +70 C
Product Details

Introduction

DGW810 is a small and lightweight but powerfulBluetooth to WiFi data transponder product. It can upload the application dataof the terminal device supporting ble / BT function to the near end / far endserver through WiFi network, so as to realize the data collection andmanagement and the networking function of the terminal device. The transponderis an ideal solution for intelligent medical treatment, health management,smart home, environmental monitoring and other industrial applications andintelligent upgrading.


Characteristic

  • Support Bluetooth version 4.2

  • Ble master mode, up to 4 slave devices can be connected at the same time

  • BT mode, up to 4 slave devices can be connected at the same time

  • WiFi supports IEEE 820.11 A / B / g / n

  • Two LED indicators directly reflect the working state of the equipment

  • Microusb interface power supply

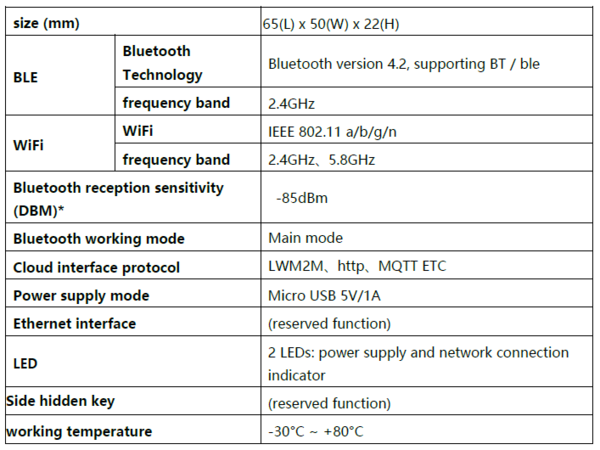

Description
