ALXEA300-16

ALXEA300-16
Antenna : 4G LTE antenna interface (optional)
Ethernet / Network Interfaces : 2 × RJ45 10/100/1000 Mbps (LAN + WAN)
Other Interfaces : HDMI out ×1, USB Type-A ×1, SATA ×1, RS232/RS485, MicroSD ×1, DC terminal
Memory & Storage : 12 GB DDR + 32 GB eMMC
Cloud Protocol : —
Security : —
Power Supply : DC 12 V
Power Consumption : ≤ 20 W
Dimensions (mm) : 185 × 140 × 44.5
Weight : —
Operating Temp. : -20 °C ~ +60 °C
Certification : —
Type / Function : Industrial AI video analytics server (16-channel real-time analysis)
Processor / MCU : 8-core ARM Cortex-A53 @2.3 GHz
Battery & Life : —
Sensing Capability : —
Operating Temperature : -20 C to +60 C
Product Details

Product Highlights

  • One-click Deployment — Menu-based quick configuration enables immediate operation once connected to the network

  • Rich AI Algorithms — Multiple built-in AI scenario algorithms, selectable and configurable based on application requirements

  • Powerful AI Computing — Supports simultaneous analysis of up to 16 channels of 1080P video

  • Legacy System Upgrade — Compatible with mainstream cameras, enabling seamless and non-destructive upgrade of existing surveillance systems


Technical Features

  • Powered by a domestic AI chipset with at least 8-core ARM Cortex-A53 CPU, main frequency ≥ 2.3GHz

  • 17.6 TOPS (INT8) peak computing performance, 12GB DDR memory, 32GB eMMC storage

  • Supports simultaneous AI video analysis on 16 channels

  • Supports independent AI algorithm configuration per channel

  • Supports direct camera data acquisition via ONVIF protocol, compatible with major brands such as Hikvision, Dahua, and Uniview

  • Supports multi-channel video playback via local Web interface

  • Supports local Web alarm popup notifications, alarm list viewing, and alarm handling

  • Supports four alarm levels: Red, Orange, Yellow, and Blue

  • Supports automatic forwarding of local alarms to third-party cloud services

  • Supports local algorithm licensing, with flexible algorithm selection

  • Supports local and remote algorithm parameter configuration (remote requires AI cloud integration)

  • Supports local adjustment of algorithm thresholds

  • Supports real-time dynamic switching of algorithms

  • Supports local ROI (Region of Interest) configuration

  • Supports multi-channel AI video output via HDMI

  • Supports voice alarm linkage via IP speakers

  • Supports scenario linkage alarm configuration via network controllers

  • Supports dual Ethernet ports for LAN and WAN simultaneous access

  • Supports multi-network routing configuration

  • Supports local system log query

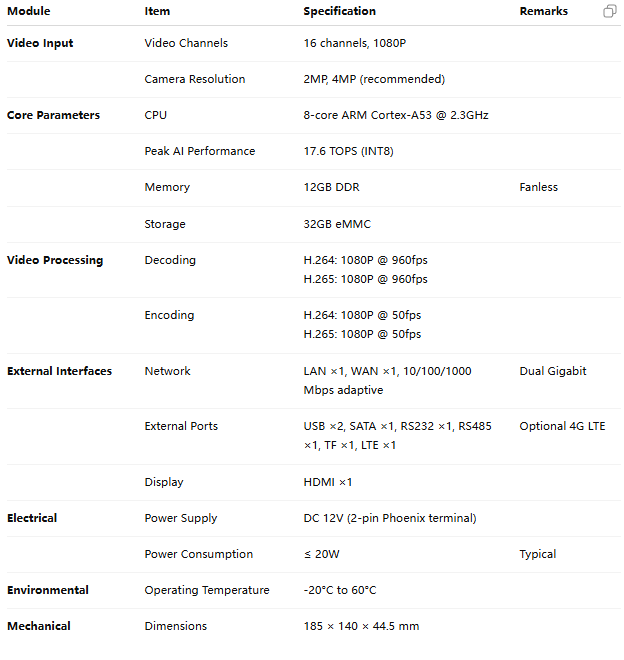

Product Specifications
